ALM.02.05 lifting magnet

ALM lifting magnet is intended for lifting, lowering and transporting of ferromagnetic materials (rolled ferrous metal) attached to a crane hook.

ALM is a removable load handling device complying with “Hoisting crane safe operation requirements ДНАП 0.00-1.03-02”. Lifting magnets and electromagnets represent equipment for the mechanization of cargo handling operations at metallurgical plants, metal product storehouses, in machine-building industry, structural steel production, metal cutting, rolled metal unloading from trucks and railway trucks, at seaports. By using them, you can increase your working efficiency, reduce time of handling operation and improve your working condition, which reduces the probability of workplace accidents. In most cases the lifting magnet can be operated by a slinger only, in some cases just a crane operator being enough for that, as well as for handling of wide and heavy cargoes.

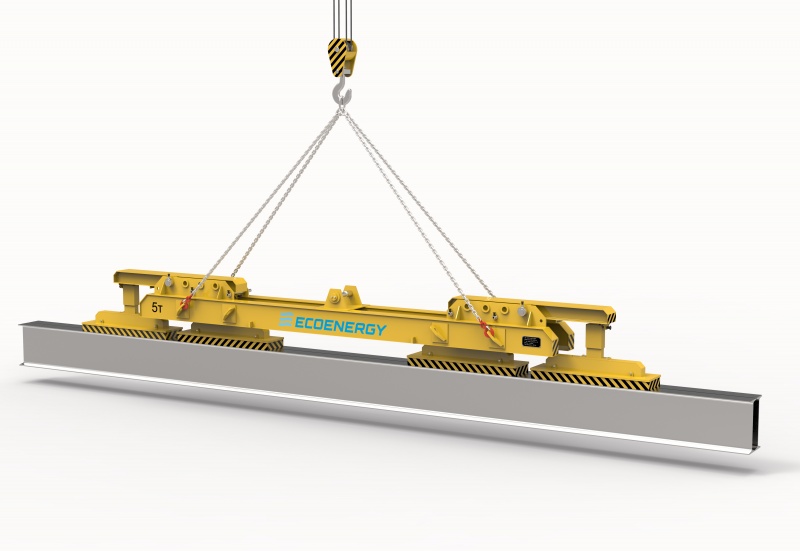

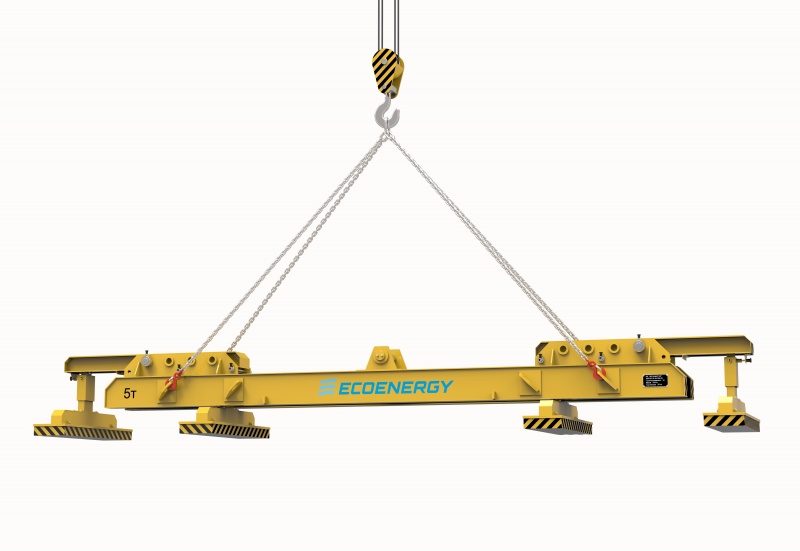

ALM.02.05 overall view



1. Lifting beam, 2. Body, 3. Magnet systemа

ALM.01.01 key specification



Parameter name Value

Overall dimensions, mm, not more than

      А
      Б
      В



6500
850
500

Load safety factor, not less than

3

Lifting capacity*, tons

5

Lower limit overall size of a load being lifted, mm, not less than

4000х1000

Upper limit overall size of a load being lifted, mm, not more than

8000х2200

Load-lifting speed, m/min

8

Moving load speed, m/min, (load inclination angle above the horizontal, not more than 6 degrees)

20

The magnetic lifter’s mass, kg, not more than

1540

The number of magnetic systems in the ALM, pcs

4



*Lifting capacity when holding sheet metal, including metal flat bars. This ALM type does not apply to rolled metal of other types..

ALM permanent magnet grippers comply with the requirements of ДСТУ prEN 13155, НПАОП 0.00-1.01 (hereinafter referred to as Requirements), ТУ У 28-30378595-001:2013 and the design documentation package of ALM.01.00.00, ALM.02.00.00, ALM.03.00.00.

Contact us to receive a census paper, which will help us to optimally solve your tasks by selecting proper ALM devices.
